Overview
The NEES Garner Valley Downhole Array (GVDA) is a ground motion research site in a seismically active region in Southern California. It is located in a narrow valley within the Peninsular Ranges Batholith 23 km east of Hemet and 20km southwest of Palm Springs and is just 7 km from the San Jacinto fault and 35 km from the San Andreas fault.
The site has been thoroughly characterized through recent borehole geotechnical tests and in other studies over the last ten years. Instrumentation of the GVDA site began in 1989. See the Geotechnical/Geophysical Specifications tab below for more details.
An array of accelerometers and pore-pressure transducers capture the ground and sub-surface motion due to local, regional and even teleseismic events. For full details of the sites sensors see the Instrumentation tab below.
In addition to the main station ground-motion instrumentation, a one-story soil-foundation-structure-interaction (SFSI) structure has been constructed at the site for the study of dynamic response of this structure during earthquakes, and some 3km to the west of the main site at the edge of the valley (at the Lake Hemet dam) another small group of sensors (GVAR) record motions of the exposed bedrock outcrop.
Geological/Geotechnical Information
The near-surface stratigraphy beneath GVDA consists of 18-25 m of lake-bed alluvium. Soil types present are silty sand, sand, clayey sand, and silty gravel. The alluvium gradually transitions into decomposed granite in the depth interval between 18 m to 25m. Decomposed granite consisting of gravely sand exists between 25 and 88 meters. At 88 meters the contact with granodiorite of the Southern California Peninsular Ranges batholith is reached.
The NEES field site in the Garner Valley is very well suited to the study of soil-foundation-structure interaction and liquefaction. The area is located near several active faults on low density alluvial soil with a near surface water table. The water table fluctuates at the GVDA site depending on the season and rainfall totals. In the wetter years the water table is at, or just below the surface in the winter and spring months. In the summer and fall months, or the entire dry years, the water table drops to 1 to 3 meters below the surface. The valley bedrock forms a basin 88 meters below the surface. Late arriving surface waves have been observed at GVDA and are likely Love waves traveling from the edge of the basin. The torsions generated on foundations by Love waves are considered to be especially destructive. This field site represents the possibility of observing Love waves on a fully instrumented structure.

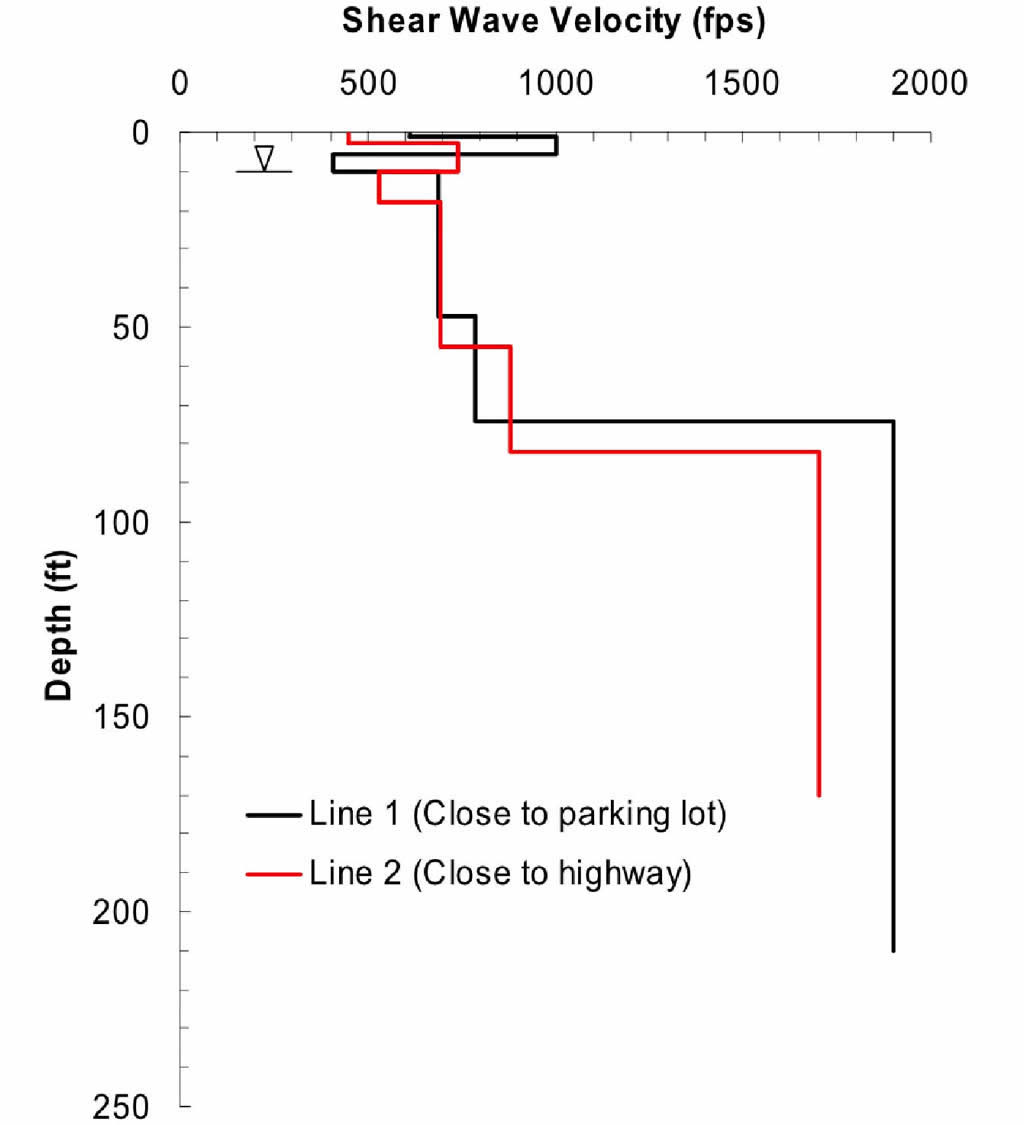

Report on Spectral Analysis of Surface Waves (introduction to SASW) testing data: GarnerValley-SASWreport.pdf
Geotechnical Logs and Data: geotech-data-report.pdf
Permeability Tests: gvda-permeability.zip
Survey Data: gvda-survey-2004.zip gvda-survey-2011.zip
SCPT: gvda-usgs-data.zip
Shallow PS Suspension log (1994): GVDARR1.xls
Deep PS Suspension Log (1996): GVDBRR1.xls
Geophysical Site Characterisation Report: GVDA-Geotech-Stellar1996.pdf
Microtremor Analysis of Surface Velocity (BSSA 2000): GVDA-Microtremor-Liu-etal_2000BSSA.pdf
Velocity Logs (XLS):
GVDDV50 Remote Rock
Instrumentation
The main Garner Valley station is instrumented with:
- 5 surface accelerometers (a linear array along the valley spanning some 250m)
- 6 downhole accelerometers (from 6m sub-surface down to 500m)
- a surface rotational sesnor
- 5 pore-pressure sensors
- 8 deep-well water-pressure sensors
- Barometric, water-table depth and misc weather sesnors
The diagram below shows the plan-view placement of these sensors.
The diagram below shows the cross-section placement depths of the main instrumentation. ![]()
Construction
Constructing the Site: Link to video
